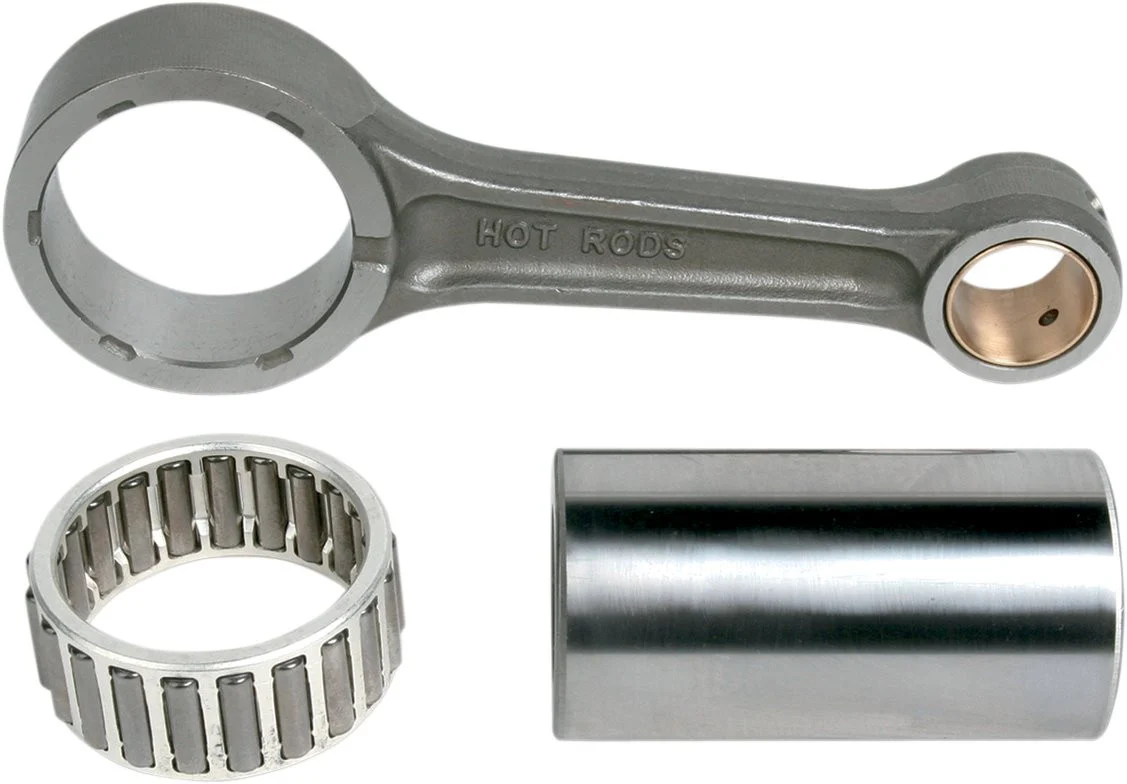

Name: Hot Rods Connecting Rod Kit (8651)
SKU: 8651
Availability: InStock

Description

Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
Feature the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging’s radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Compatible with Hot Rods and OE crankshafts
Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility

Compatible Vehicles
Years	Make	Make	Notes
2020-2021	Yamaha	Grizzly 700 YFM700 EPS XT-R
2014-2016	Yamaha	Grizzly 700 YFM700D 4×4 FI
2008-2013	Yamaha	Grizzly 700 YFM700FG 4×4 FI
2007	Yamaha	Grizzly 700 YFM700FGP 4×4 FI
2007-2013	Yamaha	Grizzly 700 YFM700FGP 4×4 FI EPS
2015	Yamaha	Grizzly 700 YFM700FGP 4×4 FI EPS
2009-2013	Yamaha	Grizzly 700 YFM700FGPSE 4×4 Special Edition FI EPS
2015	Yamaha	Grizzly 700 YFM700FGPSE 4×4 Special Edition FI EPS
2014	Yamaha	Grizzly 700 YFM700P 4×4 FI EPS
2016-2021	Yamaha	Grizzly 700 YFM700P 4×4 FI EPS
2016-2018	Yamaha	Grizzly 700 YFM700PLE 4×4 Limited Edition FI EPS
2014	Yamaha	Grizzly 700 YFM700PSE 4×4 Special Edition FI EPS
2016-2021	Yamaha	Grizzly 700 YFM700PSE 4×4 Special Edition FI EPS
2019-2021	Yamaha	Kodiak 700 YFM700K 4×4 FI
2019-2021	Yamaha	Kodiak 700 YFM700KP 4×4 FI EPS
2019-2021	Yamaha	Kodiak 700 YFM700KPSE 4×4 Special Edition FI EPS
2013	Yamaha	Raptor 700 YFM700
2015-2021	Yamaha	Raptor 700 YFM700
2006-2008	Yamaha	Raptor 700 YFM700R
2014	Yamaha	Raptor 700 YFM700R
2007	Yamaha	Raptor 700 YFM700RSE Special Edition
2009-2012	Yamaha	Raptor 700 YFM700RSE Special Edition
2008	Yamaha	Raptor 700 YFM700RSP Special Edition
2007	Yamaha	Raptor 700 YFM700RYR GYTR Edition
2009	Yamaha	Raptor 700R YFM700R
2011-2021	Yamaha	Raptor 700R YFM700R
2017-2021	Yamaha	Raptor 700R YFM700R SE
2013-2016	Yamaha	Raptor 700R YFM700RSE Special Edition
2008-2009	Yamaha	Rhino 700 YXR700F 4×4 FI
2011-2013	Yamaha	Rhino 700 YXR700F 4×4 FI
2008-2009	Yamaha	Rhino 700 YXR700FDU 4×4 Ducks Unlimited Edition FI
2009	Yamaha	Rhino 700 YXR700FSE 4×4 Special Edition FI
2008	Yamaha	Rhino 700 YXR700FSEP 4×4 Special Edition FI
2013	Yamaha	Rhino 700 YXR700FSP 4×4 Specialt Edition FI
2008-2009	Yamaha	Rhino 700 YXR700FSP 4×4 Sport Edition FI
2011-2013	Yamaha	Rhino 700 YXR700FSP 4×4 Sport Edition FI
2014-2015	Yamaha	Viking 700 YXM700DH 4×4 FI
2014-2015	Yamaha	Viking 700 YXM700P 4×4 FI EPS
2014-2017	Yamaha	Viking 700 YXM700P 4×4 FI EPS SE
2019-2021	Yamaha	Viking 700 YXM700P 4×4 FI Ranch Edition EPS
2018	Yamaha	Viking VI YXM700 4×4 Ranch Edition FI EPS
